Description
This basic VFL with output of 1mW can locate sharp bends & breaks in jacket or bare fiber within 5km. It is also useful tool to find right fibers on patch-panel and during slicing operation.

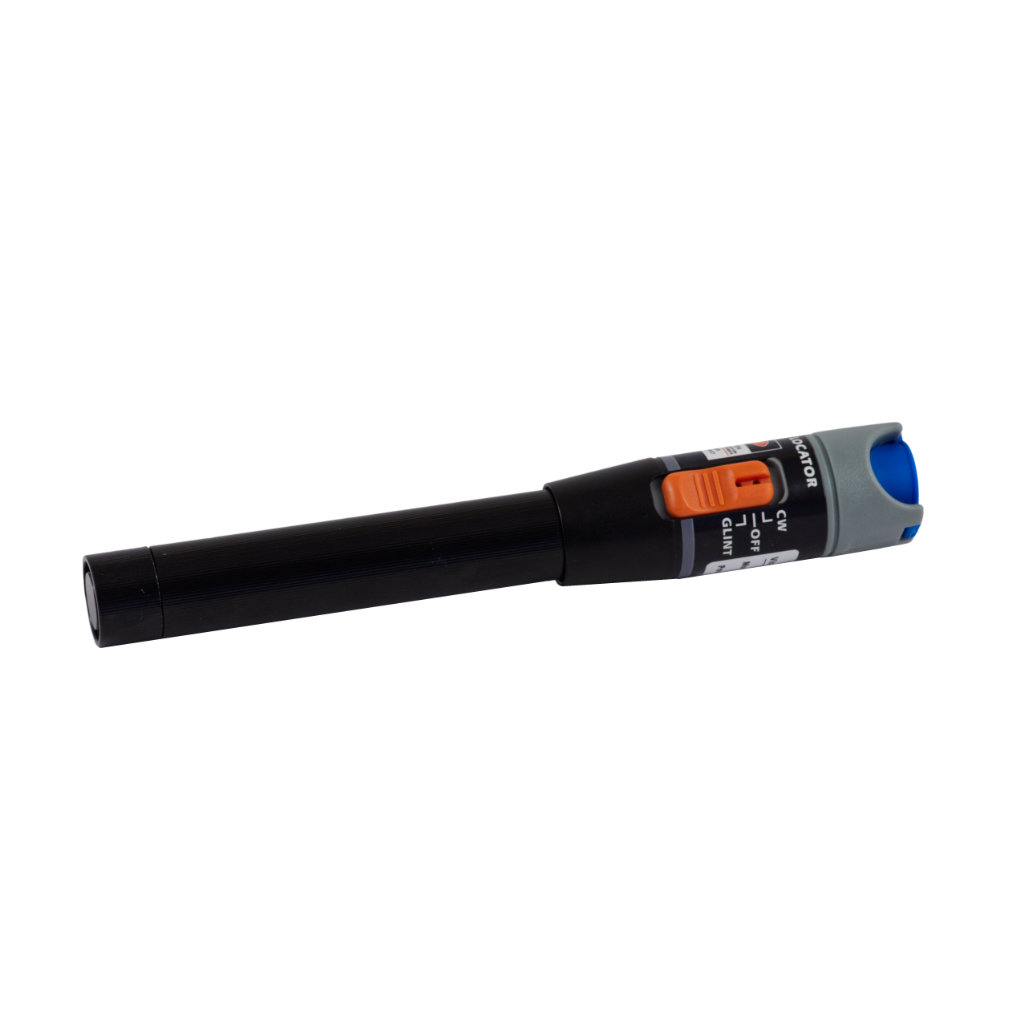

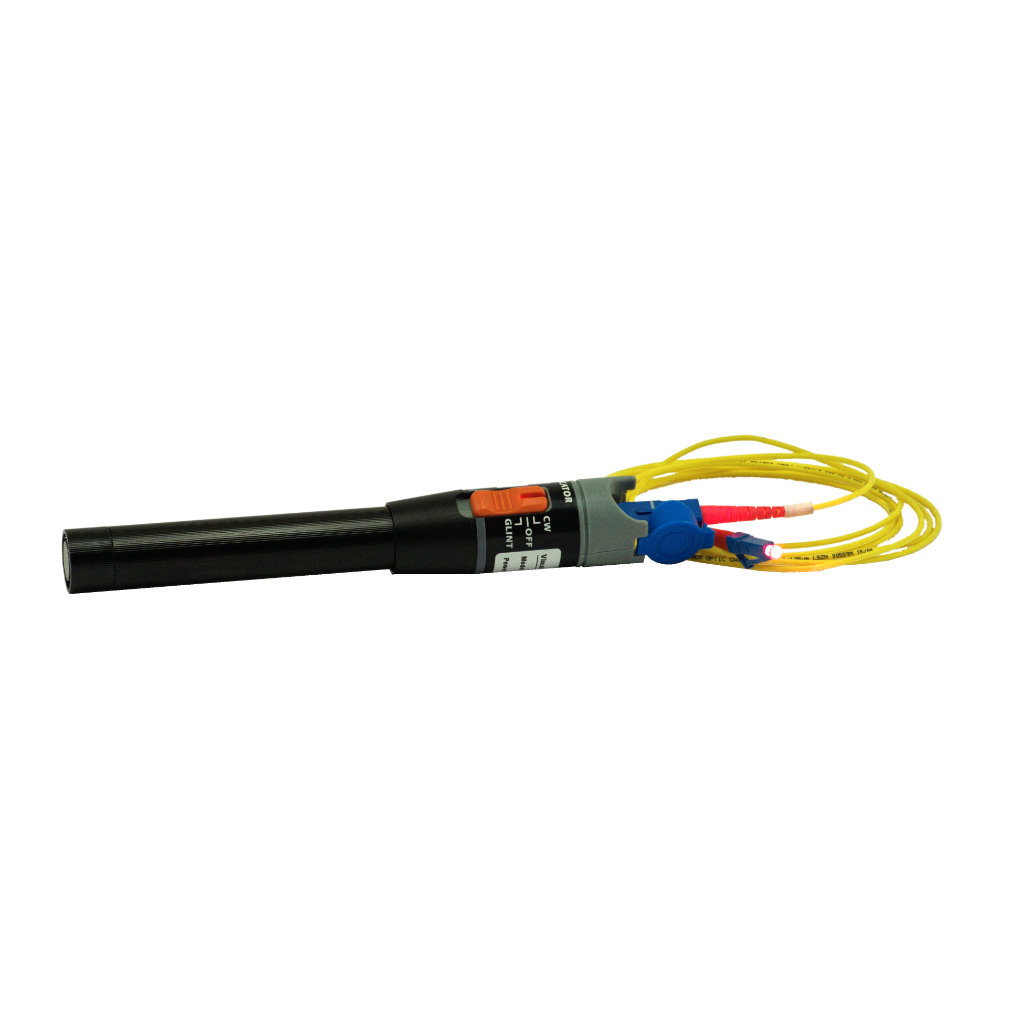

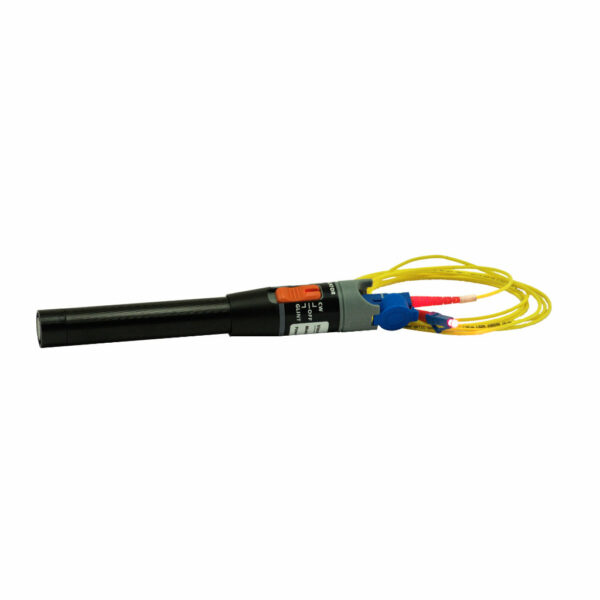

Visual Fault Locator 1mW
Price range: €13,00 through €27,00 + (VAT)
VFL (Visual Fault Locator) allows to quickly identify breaks or macro-bends in the optical fiber and identify a poor fusion splice in multi-mode or single mode optical fiber.
| Additional Discount | Range |
|---|---|
| 3% | 2 + |
Additional information
| Power | 1 mW |
|---|---|
| Operation mode | Pulsed (2Hz) and CW |
| Wavelength | 650nm ± 20nm |
| Casing | Metal |
| Connector | 2.5mm Universal connector, optional 1,25mm adapter |
| Working temperature | 0…+60 C |
| Size | 175x26x26mm, 75g |
| Battery | 2xAA |
| Battery life | ≥ 18 h |
