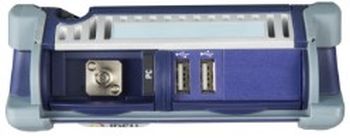

SmartOTDR 100AS PLUS Kit – APC

3.299,00 + (VAT)

SmartOTDR™ Test Kit is affordable, easy-to-use handheld tester for techs at any level.

The lightweight and compact SmartOTDR solution performs all essential fiber tests for metro and access networks with:

  • OTDR measurements
  • Fiber inspection with automated end-face analysis
  • Optical loss testing (optical light source and optical power meter)
  • Visual fault location

With a tailored interface for different skill levels, it speeds and optimizes field testing for any technician


SmartOTDR 100AS PLUS Kit – APC benefits:

  • Combines all essential fiber tests in one handheld with visual fault locator (VFL), optical power meter (OPM), and microscope options
  • Simplifies OTDR analysis with Smart Link Mapper (SLM) result view
  • Upgrades easily in the field
  • Automates testing with objective, pass/fail results
  • Enhances productivity anywhere with powerful network connectivity

SmartOTDR Kits features:

  • Single-/dual-/tri-wavelength versions with 1310, 1550, and in-service 1625 or 1650 nm wavelengths
  • Light, compact, hands-free design includes 5” high-visibility outdoor touchscreen
  • Integrated CW light source
  • Built-in broadband and dual-band selective power meter (1490/1550/1577 nm)
  • PON optimized to test through a 1×128 splitter with FTTH-SLM
  • Automated fiber inspection and macrobend detection with pass/fail analysis software
  • 3G/4G connectivity via USB, Bluetooth/WiFi
  • All-day battery life

More information available.

Powerful Connectivity:

Several connectivity options (3G/4G smartphones via USB and optional Bluetooth/WiFi) enable remote control as well as data and work-order transfers to and-from tablets, smartphones, and computers. The SmartOTDR quickly resolves field issues in real time, and optional SmartAccess Anywhere (SAA) can open a tunnel in the cloud so a technician can remotely access and operate the instrument. Compatible with a wide range of cloud servers (WebDAV service providers), the SmartOTDR can also instantly share measurement reports using onboard FastReport .pdf report generation.

SmartOTDR includes a one-year trial of cloud-based StrataSync™ for asset, configuration, and test-data management, and to ensure that all instruments have the latest software and options installed.

Each SmartOTDR includes as standard:

  • Stylus for capacitive touchscreen
  • AC/DC charger/adapter with 5 adaptable plugs (US, Europe, UK, Japan, Australia)
  • One or two SC adapter(s) for OTDR port(s)
  • Hands-free soft case with neckstrap and accessory pouch (E10GLOVE)
  • USB cable
  • Li-Ion battery

What else is included in SmartOTDR 100AS PLUS Kit – APC ?   Please see datasheet and kit description.

Brief description in specs tab.

Additional information





Dynamic Range



AC/DC charger/adapter
SC adapter(s) for OTDR port
Hands-free soft case with neckstrap and accessory pouch (E10GLOVE)
Short manual in english
USB cable
Li-Ion battery

Also included

WiFi & Bluetooth (BLE)
Light Source

Software Included

Smart TEST OTDR App.
OTDR Trace View
Expert Test Mode


Wide range of options available. Please ask us for more information.
