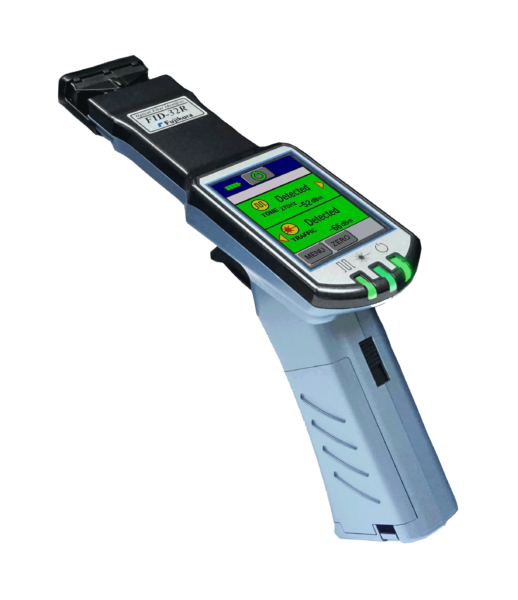

FID-32R Optical Fibre Identifier without Powermeter and ONU Detection

750,00 + (VAT)

FID-32R is the standard version of FID-30R and doesn’t contain powermeter and ONU detection option.

Lead time / Tarneaeg: 1 - 3 weeks

Additional Discount Range
3% 2 +


The fibre identifiers, used for identifying the light power presence in optical fibres, include detecting functions for TONE and TRAFFIC. Model includes a trigger operated clamp to macro-bend the fibre in order to leak light which is then detected by two photo sensors. The fibre identifier can detect the presence of several kinds of light signal and indicate signal directions. The fibre identifiers can be used for UV-coated fibre, 0.9mm diameter tight buffered fibre, fibre cord up to 3mm in diameter, and fibre ribbon with up to 12 fibres.

World’s highest signal detection sensitivity

Trigger lock / Robust Body design

2.4″ color touch screen with backlight

Adjustable settings as :

  • Result retaining / Buzzer Volume /Backlight brightness / Auto dimming / Auto power OFF

Link to manufacturers homepage.

Additional information


900 to 1700 nm


50 ×115×212 mm, 230 g including battery

Battery type

2x AA

Battery life

8 h

Screen size

2,4“ color touch screen with backlight

Detection sensitivity

Please refer datasheet

Signal direction detection


Standard cable diameters

250 μm – 3 mm

Optical powermeter
